CP2623 Master Cylinders (Flange Mount, Push Style)
Part #: CP2623
Brand: AP Racing

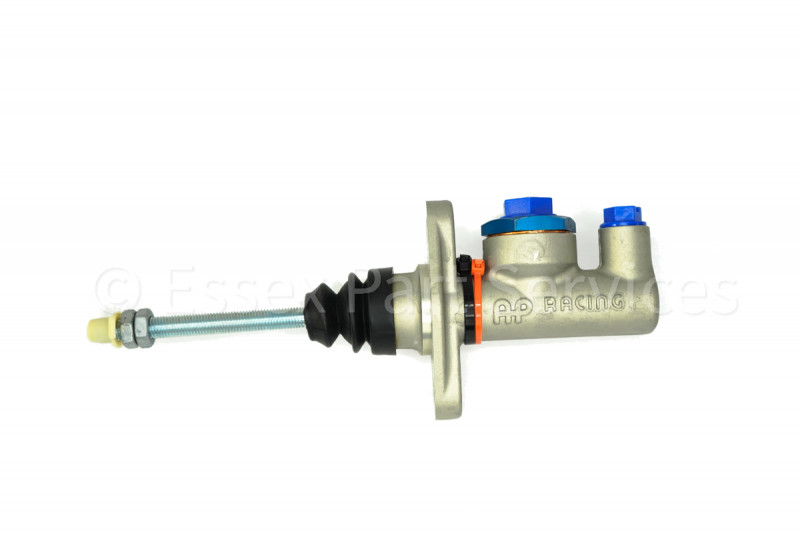

CP2623 Master Cylinders (Flange Mount, Push Style)
A lightweight, compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted.
Features:
- Forged Aluminum Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.
| Weight | 0.31Kg (0.7lbs) |
| Full Stroke | 25.4mm (1.00") |
| Travel To Cut-Off | Short - 0.68 to 1.09mm (0.27 to 0.43") |
| Inlet Hydraulic Thread | 7/16" x 20UNF |
| Outlet Hydraulic Thread | 3/8" x 24UNF |
| Push Rod Threads Available | - PRM = M8 x 1.25mm- PRT = 5/16" UNF |
| Push Rod Length from Mounting Flange | PRM065 - 65mm (2.55") PRM088 - 88mm (3.46") PRM/PRT115 - 115mm (4.53") PRM/PRT160 - 160mm (6.30")Other Pushrod Lengths available. Contact Technical Department for more information. |
