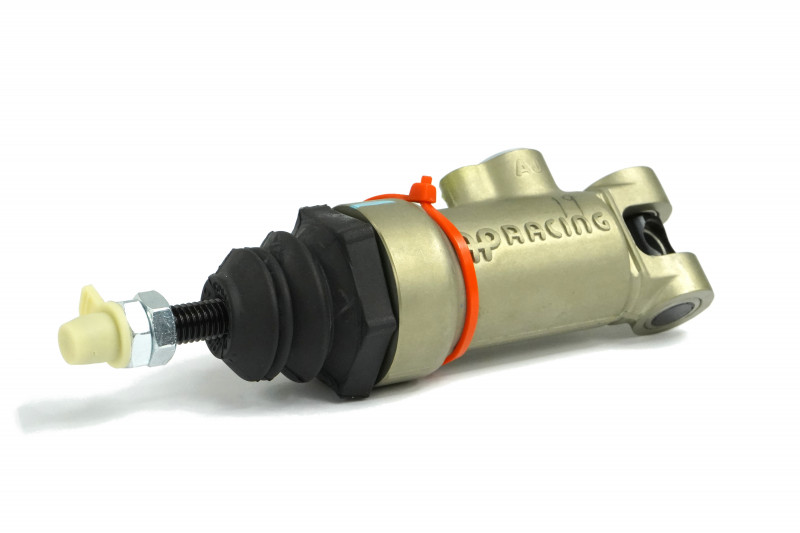

CP6467 Master Cylinders (Pull Type Trunnion Mounted)
Part #: CP6467
Brand: AP Racing
CP6467 Master Cylinders (Pull Type Trunnion Mounted)
This cylinder operates on the pull rather than push principle of other cylinders.
It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar.
- Hard Anodized Aluminum Alloy body.
- Optional 'Knock Back' system available.
- Low profile inlet and outlet.
- Extra Short travel to cut-off standard.
- Special "plug in" inlet connection can be swaged directly to -4 hose.
- Use with CP5520-2, 3, or -4 Trunnion type balance bar or purpose designed pedal box.
- Rubber boots fitted as standard.
| Weight | 0.24 to 0.28Kg 0.53 to 0.61lbs |
| Full Stroke | 25.4mm (1.00") |
| Travel To Cut-Off | Extra Short 0.48mm to 0.63mm 0.19" to 0.25" |
| Inlet Hydraulic Threads | M10x1.0 |
| Outlet Hydraulic Threads | M10x1.0 |
| Push Rod Thread | PRME - M8x1.25 |
| Inlet - Special Fittings | - 75° type - CP6465-10 - Straight type - CP6465-11 - 90° type - CP6465-12 |
