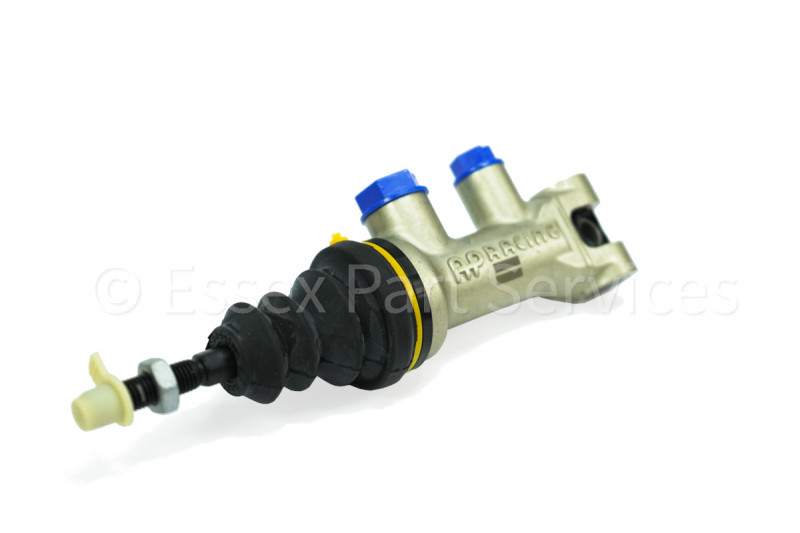

CP7854 Master Cylinders (Push Type Trunnion Mounted)
Part #: CP7854
Brand: AP Racing
CP7854 Master Cylinders (Push Type Trunnion Mounted)
A high efficiency single circuit, short push type master cylinder. Fixed through a trunnion system running in needle roller bearings and with a one piece piston / push rod it offers a significant improvement in efficiency over traditional cylinder designs.
Features:
- Hard Anodised Aluminium Alloy body.
- Compact Design.
- Extra Short travel to cut-off standard.
- One piece piston and push rod.
- Use with CP5520-3, -4 or -13 Trunnion type balance bar or purpose designed pedal box.
- Rubber boots fitted as standard.
| Weight | .28 to .293Kg (.61 to .64lbs) |
| Full Stroke | 14mm to 7/8" Bores - 30mm (1.18") - 15/16" to 1.0" Bores - 28mm (1.10") |
| Travel To Cut-Off | Extra Short - .48 to .63mm (.19" to .25") |
| Inlet Hydraulic Thread | 7/16" x 20UNF |
| Outlet Hydraulic Thread | 3/8" x 24UNF |
| Push Rod Threads | PRTE = 5/16" x 24UNF |
