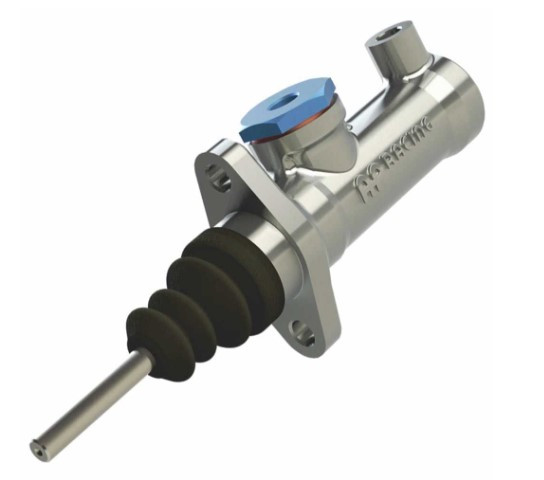

CP9093 Master Cylinders (Push Type, Imperial Threads, Flange Mount)
Part #: CP9093
Brand: AP Racing
CP9093 Master Cylinders (Push Type, Imperial Threads, Flange Mount)
- Centre Valve configuration, helps to improve cylinder performance and seal durability.
- For use with ABS and high pressure applications.
- Forged Aluminium Alloy body.
- Flange mounted. - Suitable for most brake and particularly clutch applications.
- Imperial hydraulic threads.
- Short travel to cut-off standard.
| Weight | 0.37Kg (0.81lbs) |
| Full Stroke | 30.00mm (1.18") |
| travel To Cut-Off | Short - 0.68 to 1.09mm - 0.27" to 0.43" |
| Inlet Hydraulic Thread | 7/16" x 20UNF |
| Outlet Hydraulic Threads | 3/8" x 24UNF |
| Push Rod Threads Available | PRT - 5/16UNF PRM - M8x1.25 |
| Push Road Length from Mounting Flange | 163mm (6.41") |
