Essex Designed Pad Tension Clip for AP Racing CP8350 Caliper

Part #: 13.03.05404

Brand: Essex

Reviews and Success Stories: Be the first to review this product

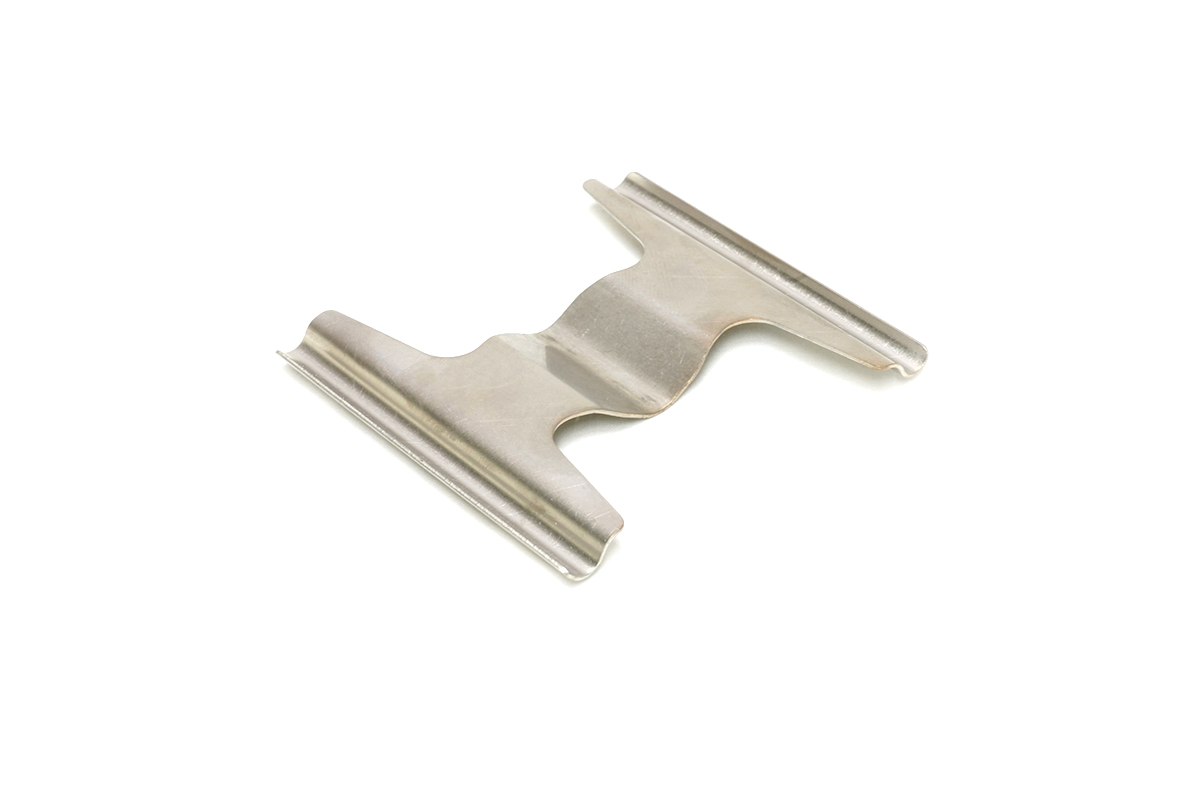

One pad tension clip for the AP Racing CP8350 caliper. Substantially reduces pad movement inside the caliper.

Sold individually, so order one for each of your calipers.

Show All vehicles this product fits

$19.95

502 In Stock: Ready to Ship  |  Add to Wishlist


You May Also Like

  • AP Racing

    CP8350-27S4L AP Racing Four Piston (Left Hand, leading, Anodized)- 38.1/41.3mm Get Details

  • AP Racing

    CP8350-26S4L AP Racing Four Piston (Right Hand, Leading, Anodized)- 38.1/41.3mm Get Details

  • AP Racing

    CP8350-25S4L AP Racing Four Piston (Left Hand, Trailing, Anodized)- 38.1/41.3mm Get Details

  • AP Racing

    CP8350-24S4L AP Racing Four Piston (Right Hand, Trailing, Anodized)- 38.1/41.3mm Get Details

Research Reviews & Success Stories

Essex Designed Pad Tension Clip for the AP Racing CP8350 caliper, which is typically used in our Standard Competition Sprint and Endurance Brake Kits. It employs a heat-treated stainless steel spring to place a small amount of tension on the top of the pads, decreasing movement and reducing noise inside the caliper.

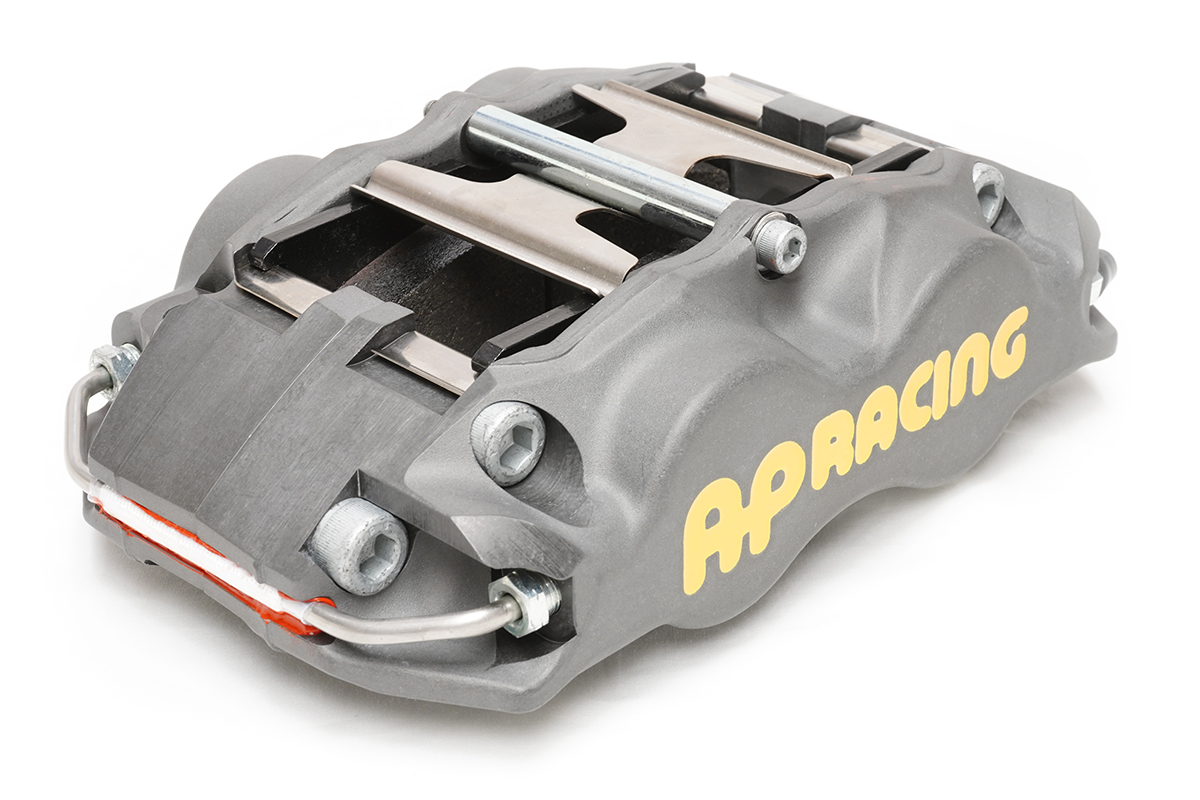

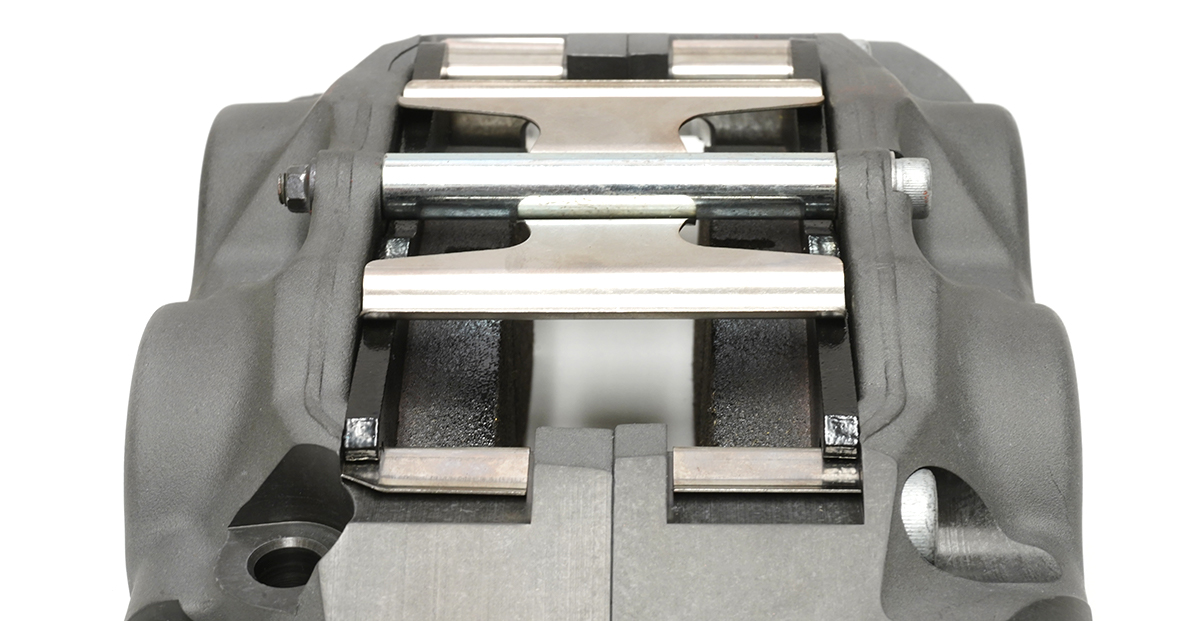

When installing, orient the center concave portion facing up, to allow the bridge tube to pass through and hold clip in place, as shown in the pics below.
